Overview

The overall system consists mainly of three modules:

The iteration field interface, which generates the iteration field or a color field based on various parameters.
The animation system is a keyframe-based animation system that can manipulate the parameters of the iteration field interface over time.
The focal system, which provides information on interesting points of an iteration field. These points may, as a result, be used to steer the animation system.

A sketch of the system’s structure can be found in the summary section.

Iteration Field Interface

The iteration field interface provides functionality to generate the following escape time fractals:

fractal name	image
Mandelbrot
Julia (combined with seeding value)

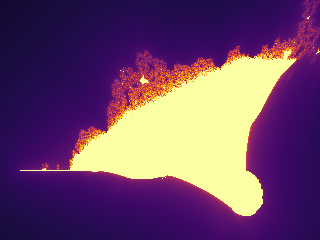

Burning Ship

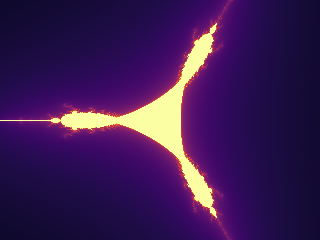

Tricorn

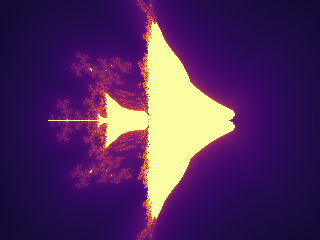

Celtic

All of them can be combined with an exponent that is used in the iteration expression on complex numbers and should always be >=2. The most prominent of the five fractals are the Mandelbrot and Julia sets.

In total, the synthesized iteration field for the escape time is determined by the following parameters set with the corresponding methods in IterationFieldInterface. All of them have a default value if not explicitly set.

Parameter	Setting Method	Default Value
Image Size in Rows, Columns	set_numpy_extension	1024x768
Fractal Type	set_fractal_type	Mandelbrot
Exponent used in iteration scheme	set_fractal_exponent	2
Seed Value for Julia set	set_fractal_seed_value	0, 0
Maximum iterations probed	set_maximum_iterations	1000
The extension in complex numbers which are shown in the window	set_extension	1.5
Screen center point in complex number pane	set_center_point	0, 0

Querying the result can be done by three methods:

get_discrete_iteration_field: gets a two-dimensional numpy array of int indicating the number of iterations till escape.
get_continuous_iteration_field: gets a two-dimensional numpy array of floats, which is a smoothed version of the iteration field.
get_color_field: gets a three-dimensional numpy array of uint8 containing mapped colors from the iterations field. The color mapping method is explained in the following paragraph.

The ready colorized fields can be displayed and saved with the Image class from PIL.

Colorization

For the colorization, several base options are offered:

name	sample image

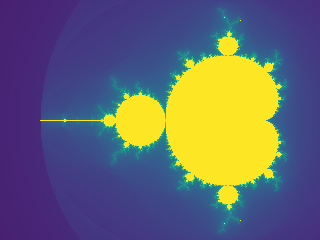

viridis

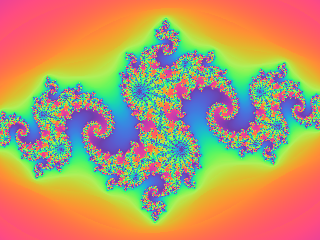

cyclical(2)
inferno

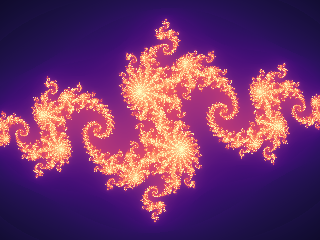

magma
plasma
cool

These are set by:

ifi = IterationFieldInterface()
ifi.set_colorization_information(ColorSystem.viridis(), False)

The last parameter of the command ifi.set_colorization_information(ColorSystem.cool(), False) indicates whether we want to work on a discretized iteration field (=True) for coloring or a continuous iteration field (=False) that takes into account the exact iteration result when divergence has been obtained.

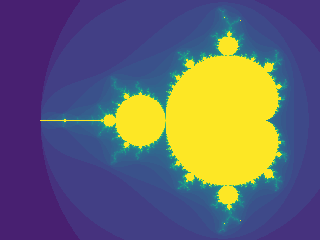

discrete field	continuous field

The next and last relevant parameter for visualization is the logarithmic strength. This parameter increases the resolution of low iteration values.

ifi = IterationFieldInterface()
ifi.set_colorization_information(ColorSystem.viridis(), False)
ifi.set_colorization_log_strength(0.5)

These are shown in the following examples.

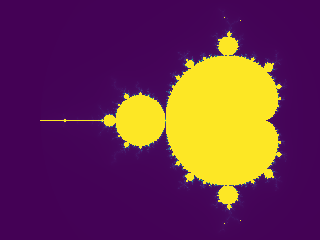

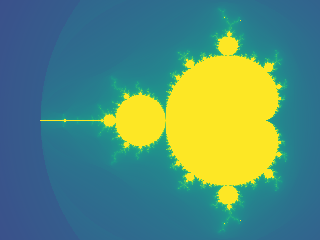

log strength = 0.0	log strength = 2.0

Example

An example to generate the typical Mandelbrot image.

from PIL import Image
from cinefractal import IterationFieldInterface, ColorSystem

WIDTH = 1280
HEIGHT = 1024
IMAGE_NAME = "mandelbrot.png"

ifi = IterationFieldInterface()
ifi.set_numpy_extension(HEIGHT, WIDTH)
ifi.set_maximum_iterations(1000)
ifi.set_center_point(-1.0, 0.0)
ifi.set_extension(1.2)
ifi.set_colorization_information(ColorSystem.cyclical(3.0), False)
ifi.set_colorization_log_strength(0.5)

print("Computing mandelbrot fractal...")
color_field = ifi.get_color_field()

image = Image.fromarray(color_field)
image.save(IMAGE_NAME)
image.show()
print(f"File saved at {IMAGE_NAME} with resolution {WIDTH}x{HEIGHT}")

Animation

The animation system is a keyframe-based system designed to steer the IterationFieldInterface. In combination with the package MoviePy, MP4 videos can be easily constructed.

The animation system consists of two main classes:

The AnimationRecorder: This class takes the key frame information of what should happen when in the movie. The animation recorder can generate an AnimationPlayer.
The AnimationPlayer: The animation player can simply be asked for the length of the clip and can be asked to manifest its data to the IterationInterfaceField for a certain time. Animation can not be changed anymore in the animation player.

The parameters and defaults of the AnimationRecorder are comparable with those of the IterationFieldInterface. The main difference is that timings are specified for the keyframe positions.

Parameters and setting methods are specified in the following table:

Parameter	Setting Method	Default Value
Exponent used in iteration scheme	set_keyframe_exponent	2
Seed Value for Julia set	set_keyframe_fractal_seed_value	0, 0
Maximum iterations probed	set_keyframe_max_iterations	1000
The extension in complex numbers which are shown in the window	set_keyframe_extension	1.5
Screen center point in complex number pane	set_keyframe_render_center_point	0, 0
The log strength for coloring fractals	set_keyframe_log_strength	0.0

Most of the values can also be specified by the constructor of the animation recorder.

The procedure of using that system is to set up an IterationFieldInterface first. Then specify your animation with the AnimationRecorder. Once it is done, use the get_animation_player method to obtain an AnimationPlayer. Now set up a MoviePy movie and use the combination of apply_animation to the IterationFieldInterface and get_color_field to ask for a numpy array that can be recorded with MoviePy.

Example

Render an animated Julia zoom to an MP4 file using moviepy.

A Julia set with a fixed start value (-0.8, 0.156) animated in three segments: zoom in (radius 1.5 -> 1e-4), zoom back out (-> 0.1), then pan to the right while holding the radius. Demonstrates several animation tracks (radius and center point) with hold key frames.

The animation system mutates the IterationFieldInterface each frame; we then ask the interface for its color field, which is already a (rows, cols, 3) uint8 array – exactly the frame format moviepy expects.

from moviepy import VideoClip

from cinefractal import (
    AnimationRecorder,
    ColorSystem,
    FractalType,
    IterationFieldInterface,
)

WIDTH = 1280
HEIGHT = 720
FPS = 30
SEGMENT = 6.0  # seconds per animation segment; total duration is 3 * SEGMENT

# --- Build the animation ---------------------------------------------------
# The constructor seeds time 0. Defaults mirror IterationFieldInterface, so we
# only override what we animate or want different from the start.
animation = AnimationRecorder(
    exponent=2,
    # log color scaling (mapped via exp_m1 internally), so the fast-escaping
    # zoom stays colorful. exp_m1(2.0) ~= 6.4, a moderate strength.
    log_strength=2.0,
    max_iterations=1000,
)
# Constant Julia start value (set as the seed at t = 0).
animation.set_keyframe_fractal_seed_value(0.0, -0.8, 0.156)
# Segment 1 (0 .. SEGMENT): logarithmic zoom in, extension 1.5 -> 1e-4.
animation.set_keyframe_extension(SEGMENT, 1e-4)
# Segment 2 (SEGMENT .. 2*SEGMENT): zoom back out to 0.1.
animation.set_keyframe_extension(SEGMENT * 2, 0.1)
# Hold the center at the origin through both zoom segments.
animation.set_keyframe_render_center_point(SEGMENT * 2, 0.0, 0.0)
# Segment 3 (2*SEGMENT .. 3*SEGMENT): pan to the right (extension held at 0.1).
animation.set_keyframe_render_center_point(3 * SEGMENT, 1.0, 0.0)
animation = animation.get_animation_player()
duration = animation.max_time()

# --- Configure the field interface (type / size / colors set once) ---------
ifi = IterationFieldInterface()
ifi.set_numpy_extension(HEIGHT, WIDTH)
# Only the fractal *type* needs to be set here; exponent and seed value are
# driven by the animation every frame.
ifi.set_fractal_type(FractalType.julia())
ifi.set_colorization_information(ColorSystem.inferno(), False)


def make_frame(t):
    """Render the frame at time `t` (seconds)."""
    animation.apply_animation(t, ifi)
    # (rows, cols, 3) uint8 -- the exact frame layout moviepy wants.
    return ifi.get_color_field()


clip = VideoClip(make_frame, duration=duration)

output_path = "julia_zoom.mp4"
print(f"Rendering {duration:.1f}s at {WIDTH}x{HEIGHT}, {FPS} fps -> {output_path}")
clip.write_videofile(output_path, fps=FPS)
print(f"Done: {output_path}")

Focal System

The focal system searches for interesting points in a fractal escape-iteration field based on local variance. Its structure is a two-tiered system roughly comparable to the animation system.

The focal system consists of two main classes:

The FocalSystemInterface: This system can be parametrized for which focal points to look. For the system to work correctly, the parametrization must be consistent with the animation system and the iteration interface. After parametrization is done, a FocalPointResult can be obtained to query focal points.
The FocalPointResult: This class represents a collection of the focal points asked for. They can be sorted by various criteria and returned in several formats.

The parametrization methods for the FocalSystemInterface are as follows. It is the user’s responsibility to keep this consistent with the parameters set animation system and the iteration interface system. Special attention has to be paid to the fact that the animation system changes values over time. So it is best to query focal points for a defined parameter set at a defined keyframe in the animation. Inconsistent parametrization will not result in a runtime error but in a wrong determination of focus points.

Parameter	Setting Method	Default Value
Exponent used in iteration scheme	set_fractal_exponent	2
The fractal type used to calculate the focal point	set_fractal_type	Mandelbrot
Seed Value for Julia set	set_fractal_seed_value	0, 0
Maximum iterations probed	set_maximum_iterations	1000
The extension in complex numbers for the region to search points in	set_extension	1.5
The minimum distance all searched points have to be away from the search center	set_extension_min	0.0
The render extension the points are judged at (smaller = deeper zoom), decoupled from the search extension	set_evaluation_extension	1.5
Screen center point in complex number pane	set_center_point	0, 0

Most of the values can also be specified by the constructor of the focal system interface.

Once the FocalSystemInterface has been constructed, a FocalPointResult structure can be obtained with the method create_collection_of_points, which requires the number of focal points to obtain. It will pick the best ones based on the variance quality metric. The resulting FocalPointResult has three methods to obtain the focal points in different orders and characteristics as a list of tuples. They can either be ordered by evaluation quality or by distance (see here). Here the method get_path_from_start_point_with_distance is the most interesting because the distance information can be used for timing purposes, as shown in the example below. In methods that receive an explicit starting point, that point is included in the returned path. The path elements can then be used to generate key frames for the animation system.

Example

Autofocus + animated Julia tour rendered to an MP4 with moviepy.

This combines the autofocus logic of the native fractal_viz demo with the movie-rendering structure of julia_zoom_movie.py:

The focal system scatters candidates in a coarse search region and keeps the most interesting ones (highest local variance), judged at a deep evaluation scale.
Those kept points are ordered into a short tour, annotated with the cumulative travel distance.
That distance drives the timing of an AnimationRecorder: the camera pans to each point (at constant speed), then zooms in to detail scale and back out before traveling on.
moviepy renders the resulting AnimationPlayer frame by frame.

from moviepy import VideoClip

from cinefractal import (
    AnimationRecorder,
    ColorSystem,
    FocalSystemInterface,
    FractalType,
    IterationFieldInterface,
    PathGenerationCriterion,
)

# --- Render settings -------------------------------------------------------
WIDTH = 1280
HEIGHT = 720
FPS = 30

# --- Fractal / autofocus settings (mirrors the fractal_viz demo) -----------
JULIA_SEED = (-0.8, 0.156)
MAX_ITERATIONS = 300

COARSE_SCALE = 1.5          # extension we hover at between zooms
COARSE_SEARCH_SCALE = 2.0   # radius we scatter search candidates in
DETAIL_SCALE = 1e-4         # extension we dive to at each point (smaller = deeper zoom)

NUM_FOCAL_POINTS = 5       # how many interesting points to keep / visit
START_POINT = (-1.5, 0.0)   # where the camera tour starts

# --- Timing ----------------------------------------------------------------
TRAVERSAL_SECONDS = 4.0     # total time spent panning across the whole tour
ZOOM_TIME = 4.0             # seconds per zoom phase (in and out separately)


def build_animation():
    """Run the autofocus search and turn the resulting tour into a player."""
    animation = AnimationRecorder(
        exponent=2,
        log_strength=2.0,
        max_iterations=MAX_ITERATIONS,
        extension=COARSE_SCALE,
        julia_start_real=JULIA_SEED[0],
        julia_start_imag=JULIA_SEED[1],
    )

    # Configure and run the focal search.
    focal = FocalSystemInterface(max_iterations=MAX_ITERATIONS)
    focal.set_fractal_type(FractalType.julia())
    focal.set_fractal_seed_value(*JULIA_SEED)
    focal.set_extension(COARSE_SEARCH_SCALE)
    # Judge each candidate at the depth we actually dive to, decoupled from the
    # search radius.
    focal.set_evaluation_extension(DETAIL_SCALE)

    result = focal.create_collection_of_points(NUM_FOCAL_POINTS)
    path = result.get_path_from_start_point_with_distance(
        PathGenerationCriterion.short_path(), *START_POINT
    )

    # Scale travel distance to wall-clock time so the pan runs at constant speed.
    end_dist = path[-1][2]
    time_scale = TRAVERSAL_SECONDS / end_dist if end_dist > 0.0 else 0.0

    time_passed = 0.0
    for real, imag, dist in path:
        time_passed += dist * time_scale
        animation.set_keyframe_render_center_point(time_passed, real, imag)

        # The start point only seeds the pan; don't zoom there.
        if dist <= 0.0:
            continue

        # Hold the coarse scale on arrival, dive to detail, then come back out.
        animation.set_keyframe_extension(time_passed, COARSE_SCALE)
        time_passed += ZOOM_TIME
        animation.set_keyframe_extension(time_passed, DETAIL_SCALE)
        time_passed += ZOOM_TIME
        animation.set_keyframe_extension(time_passed, COARSE_SCALE)
        # Re-pin the center so we don't drift off target while zooming.
        animation.set_keyframe_render_center_point(time_passed, real, imag)

    return animation.get_animation_player()


# --- Build animation and configure the field interface ---------------------
animation = build_animation()
duration = animation.max_time()

ifi = IterationFieldInterface()
ifi.set_numpy_extension(HEIGHT, WIDTH)
# Only the type is set here; exponent and seed are driven by the animation.
ifi.set_fractal_type(FractalType.julia())
ifi.set_colorization_information(ColorSystem.inferno(), False)


def make_frame(t):
    """Render the frame at time `t` (seconds)."""
    animation.apply_animation(t, ifi)
    # (rows, cols, 3) uint8 -- the exact frame layout moviepy wants.
    return ifi.get_color_field()


clip = VideoClip(make_frame, duration=duration)

output_path = "julia_autofocus.mp4"
print(f"Rendering {duration:.1f}s at {WIDTH}x{HEIGHT}, {FPS} fps -> {output_path}")
clip.write_videofile(output_path, fps=FPS)
print(f"Done: {output_path}")

Summary

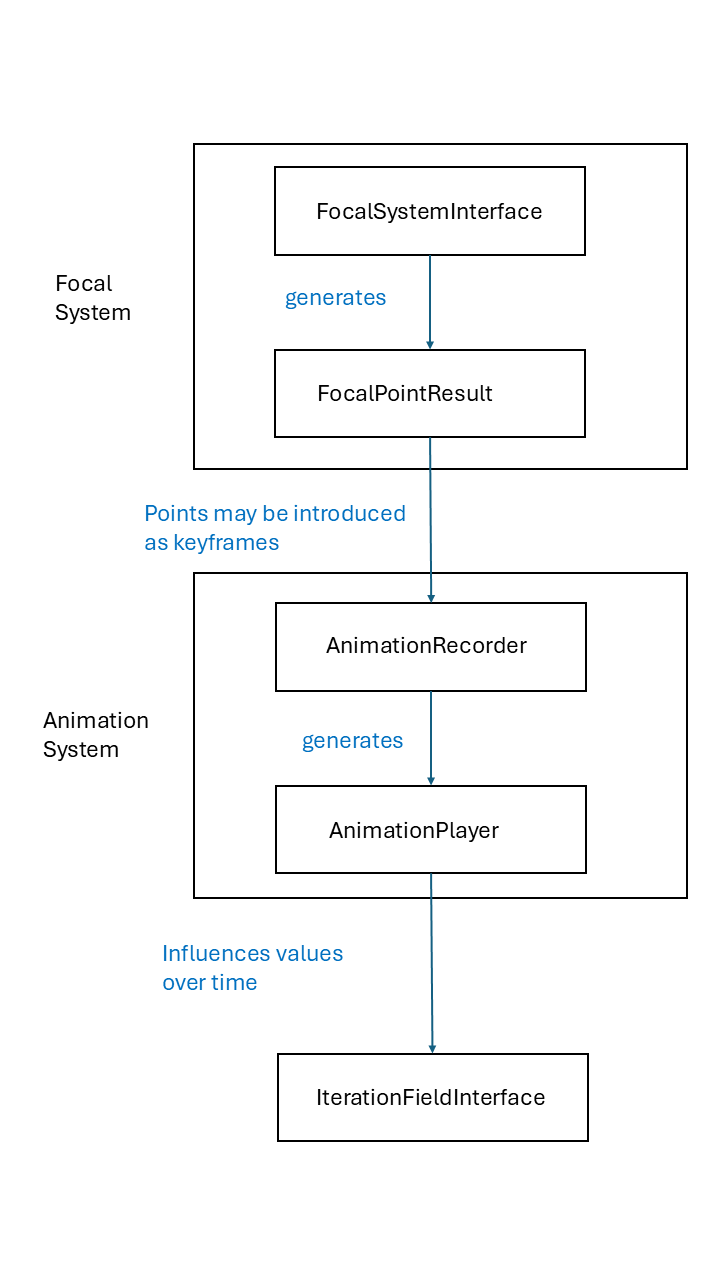

The overall data flow of the system from Focal System over the Animation System down to the Iteration Field Interface can be summarized in the following picture:

Dataflow summary
